Product Overview

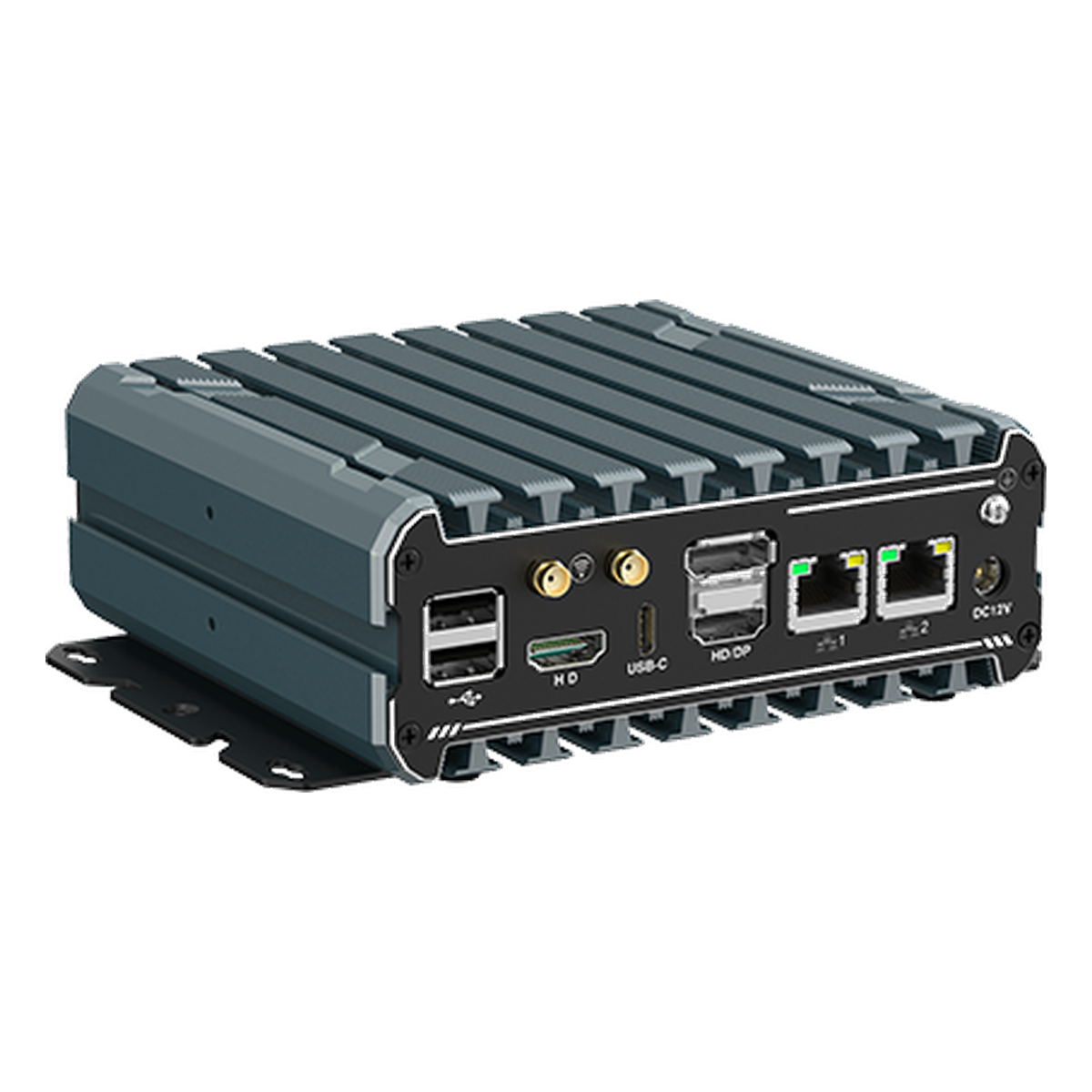

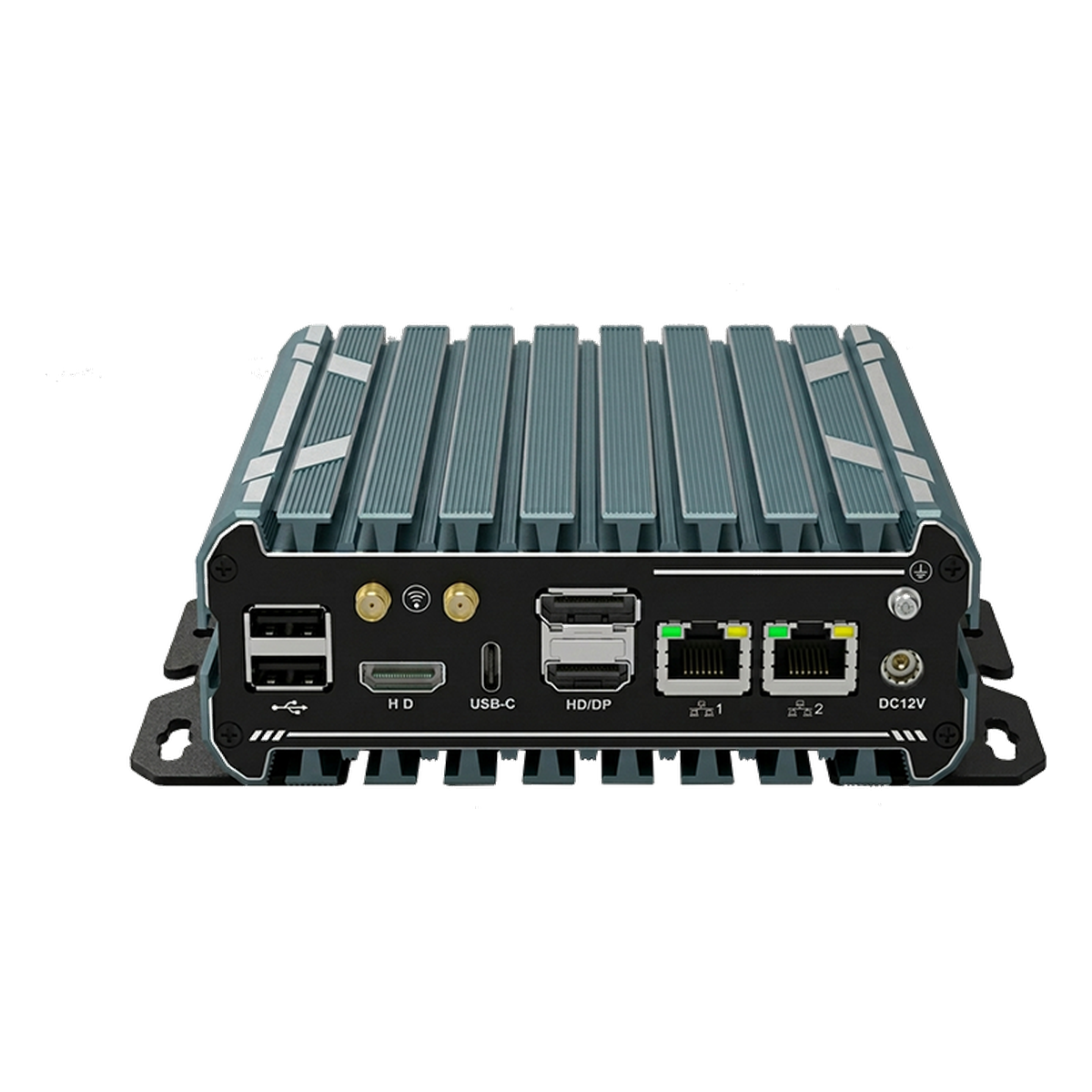

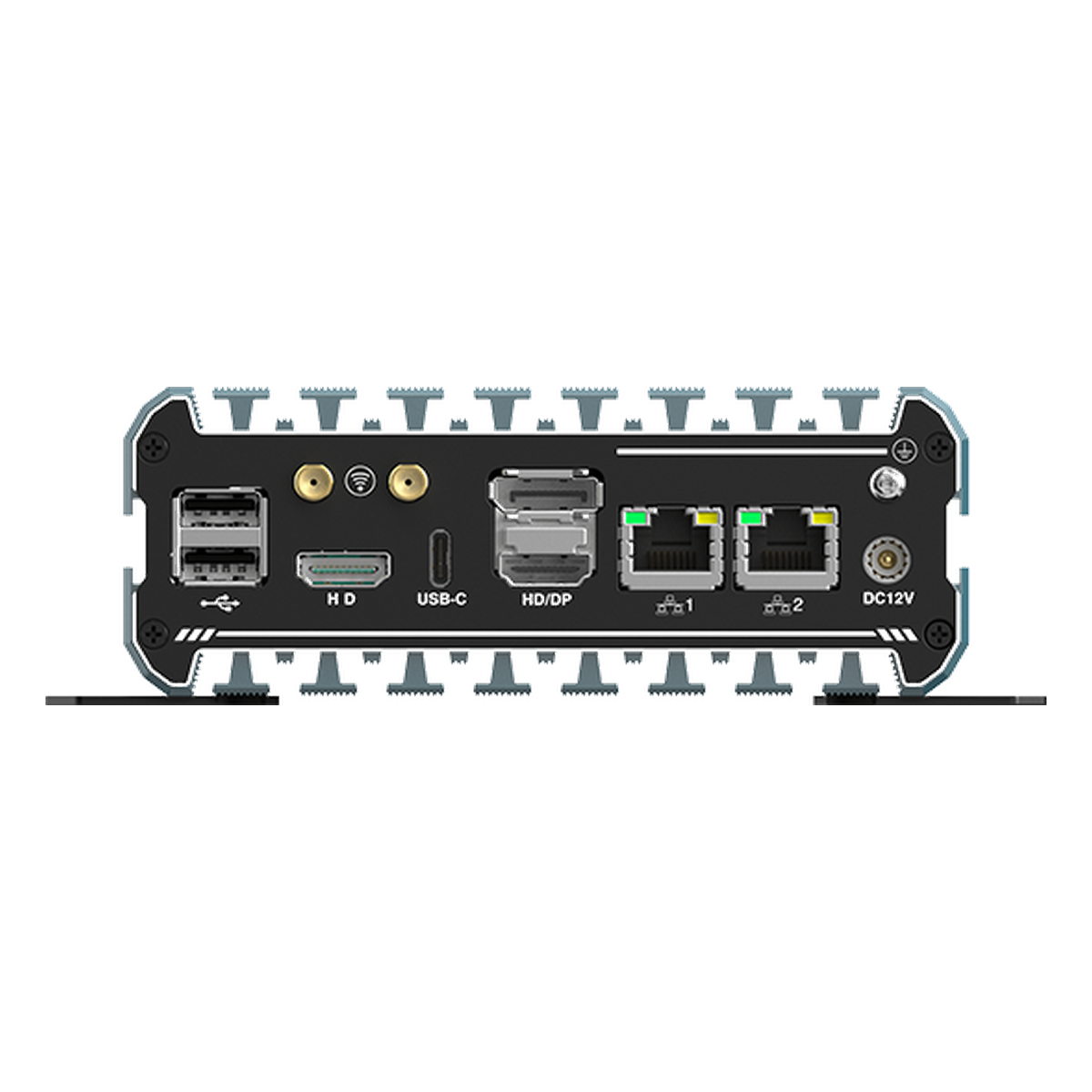

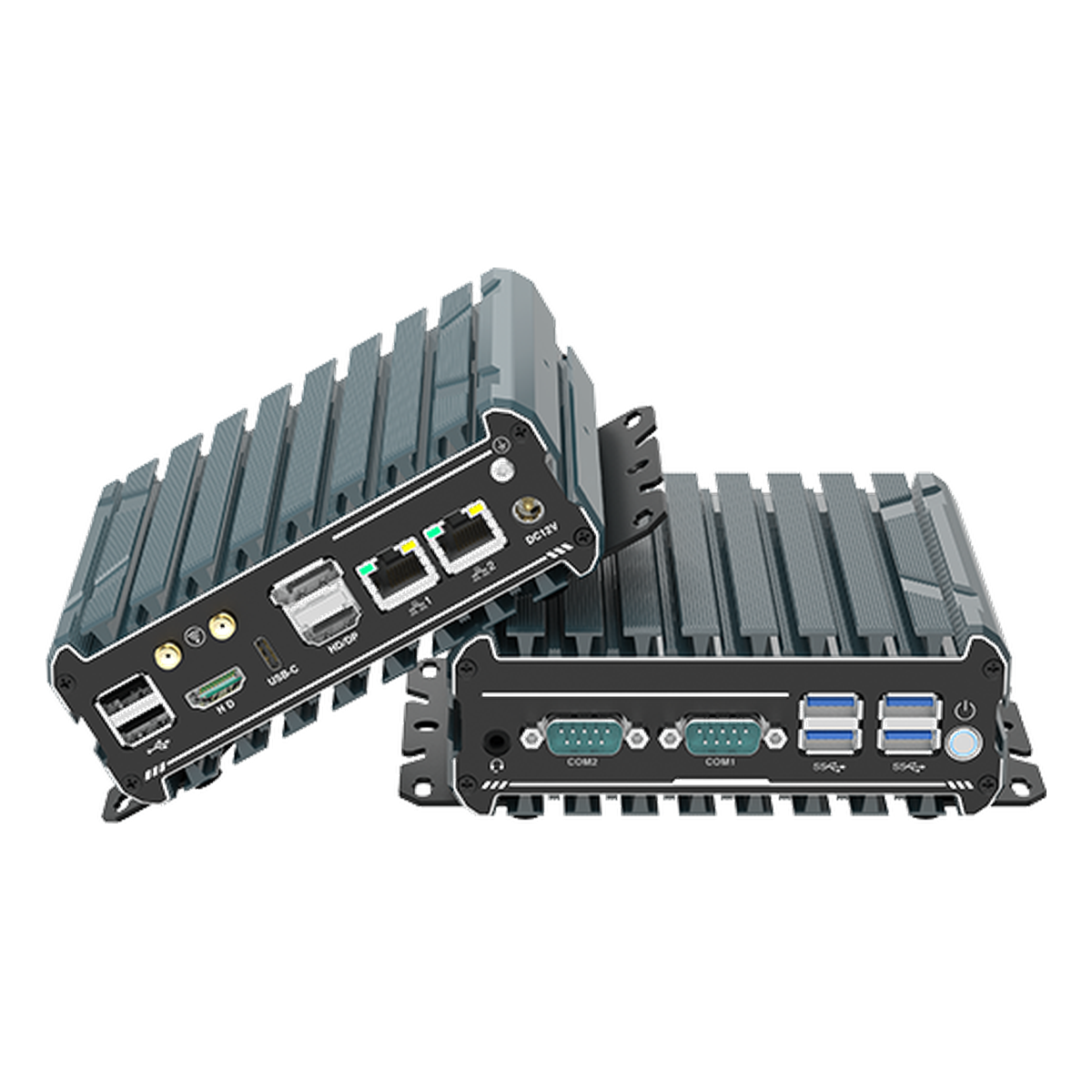

Fanless industrial BOX-PC powered by Intel 11th generation Tiger Lake-U processors, designed for industrial networking, automation, edge gateway and IoT applications.
Designed for B2B automation projects, this platform helps engineering teams evaluate processor, I/O, power input, operating system, mounting method, and lifecycle requirements before RFQ.
Project-ready Highlights
Engineering Data
Core parameters are shown in a full-width table so procurement and engineering teams can compare configuration requirements quickly.
| Processor | Onboard Intel 11th generation Tiger Lake-U series processor |
|---|---|
| Chipset | Intel |
| Memory | 2 x DDR4 3200MHz SO-DIMM, up to 64GB |
| Storage | 1 x M.2 Key-M 2280 NVMe PCIe3.0 x4 / SATA3.0 + 1 x SATA3.0 |
| LAN | 6 x Intel 2.5G LAN ports |
| COM | 1 x COM, RJ45 interface |
| USB | 4 x USB3.0 + 2 x USB2.0 |
| Display Output | 1 x HDMI2.0, up to 4096 x 2160 @ 60Hz |
| Expansion | 1 x MiniPCIe slot, supports PCIe and USB2.0; WiFi / 3G / 4G; 1 x 8-bit GPIO |
| Power Input | DC12V-19V input, 90W |
| Operating Temperature | -10°C to 60°C |
| Storage Temperature | -40°C to 80°C |
| Humidity | 10% - 95% @ 40°C, non-condensing |
| Dimensions | 182 x 125 x 62.5mm |
| Material | High-efficiency heat dissipation aluminum alloy |
| Thermal Design | Fanless passive heat dissipation |

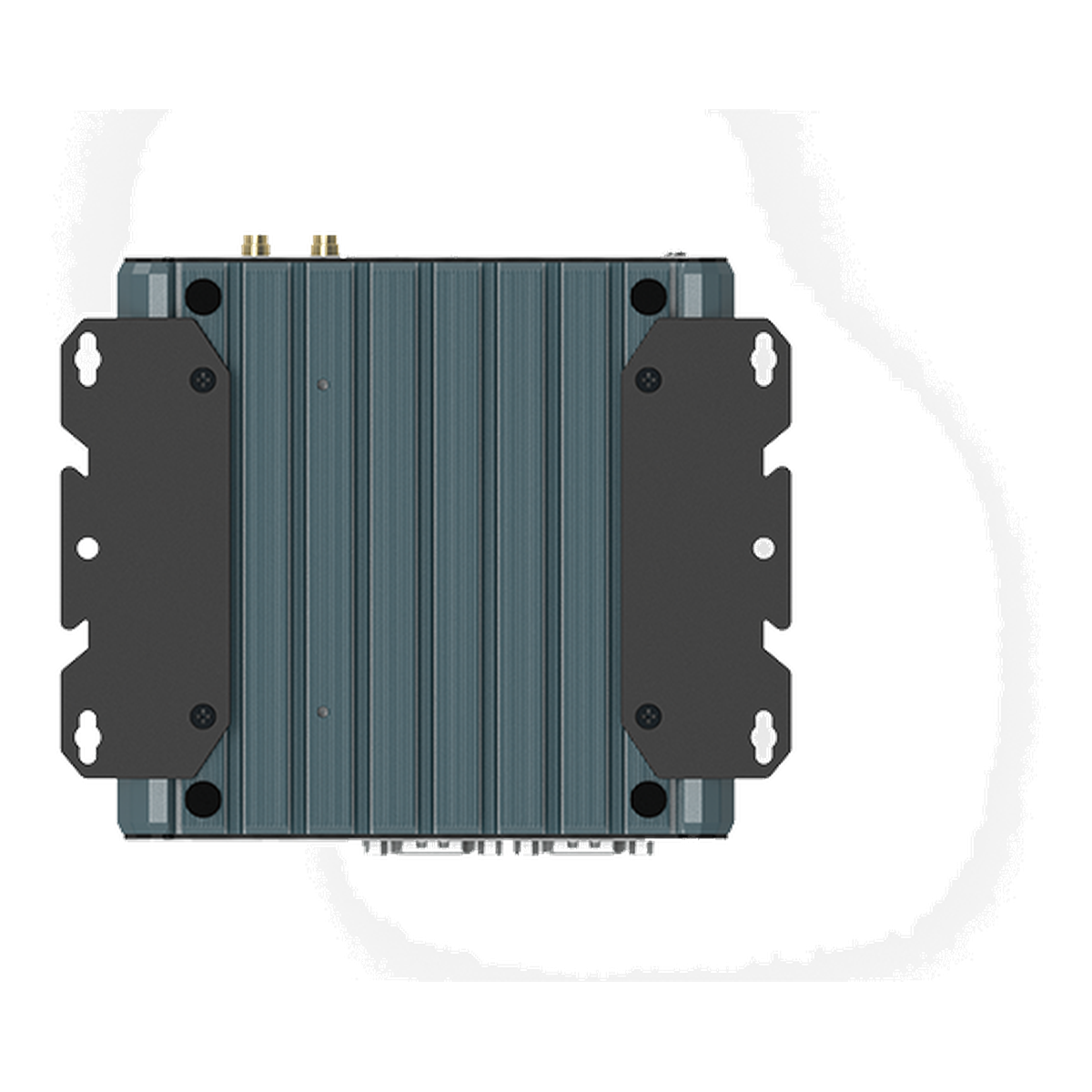

| Mounting | Embedded / Wall Mount / Desktop Bracket |
| Weight | Net 1.5kg / Gross 2.0kg |
| Operating System | Windows 10 / Windows 11 / Linux |
I/O Configuration
Ordering Options
Application Scenarios
Customization Options
Tell us your CPU, memory, storage, I/O, voltage, mounting, operating system, branding, packaging, and quantity requirements.
Documentation
Quality & Compliance
Project buyers can discuss compliance documents, aging test requirements, thermal design, lifecycle supply and sample validation before RFQ.
