Product Overview

Product Overview

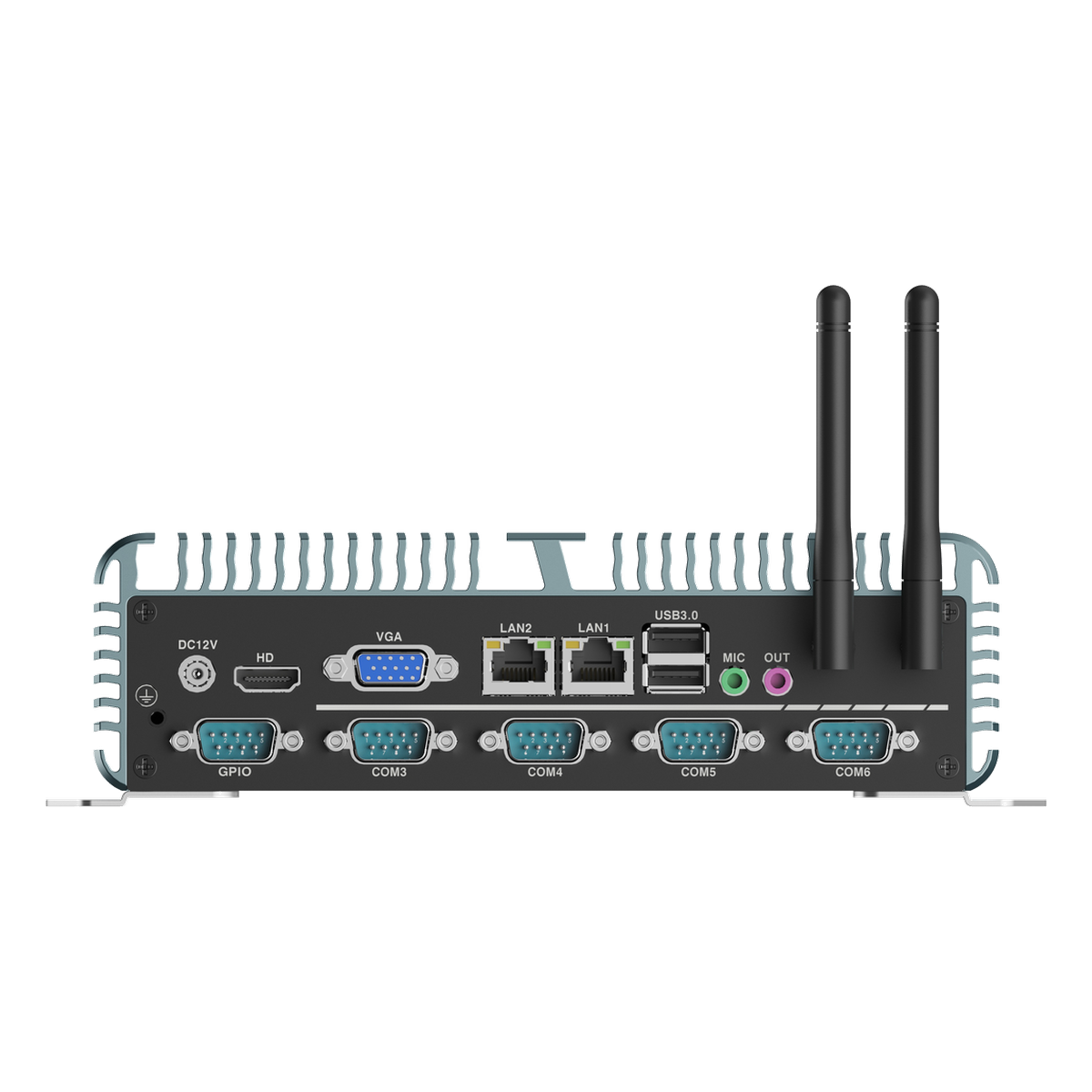

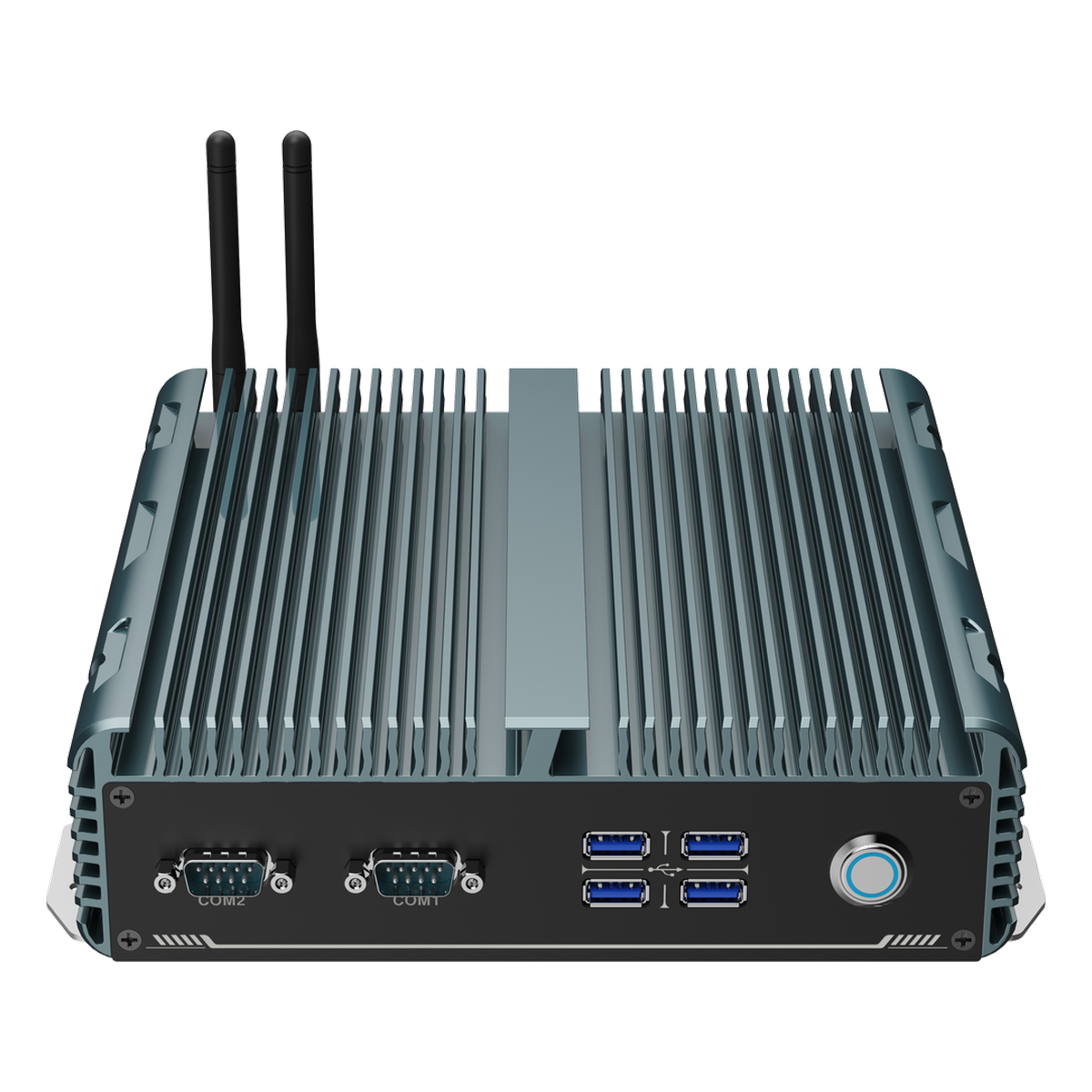

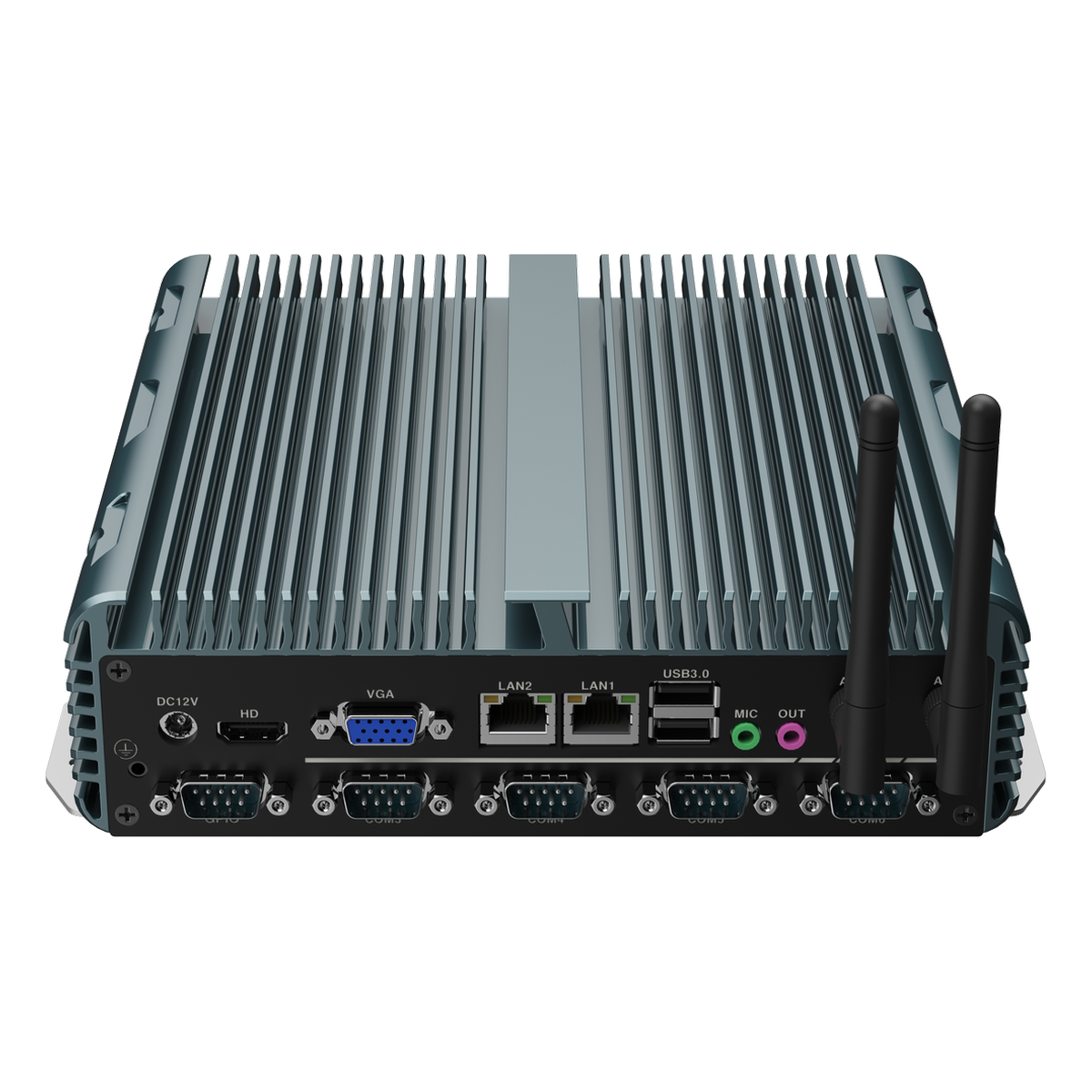

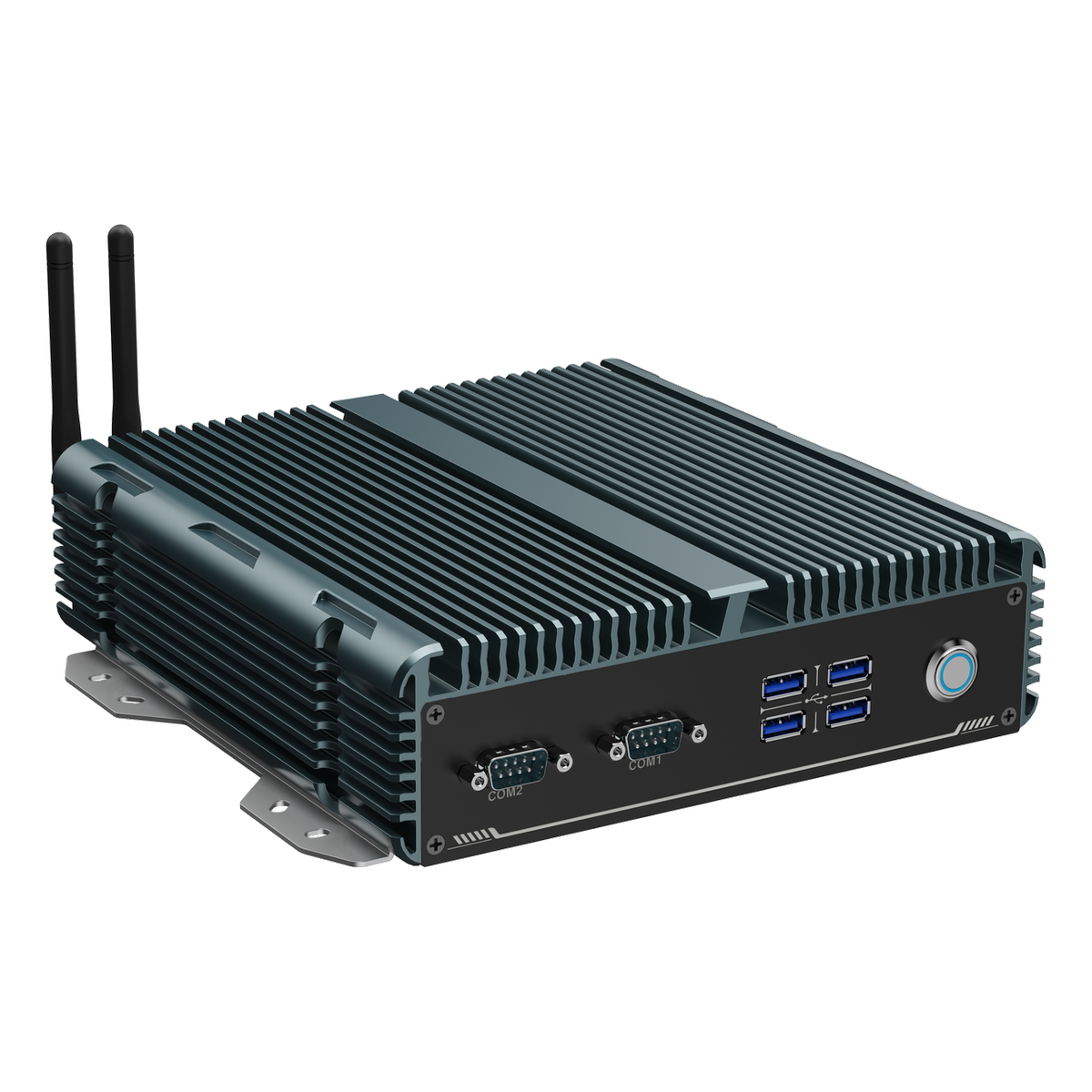

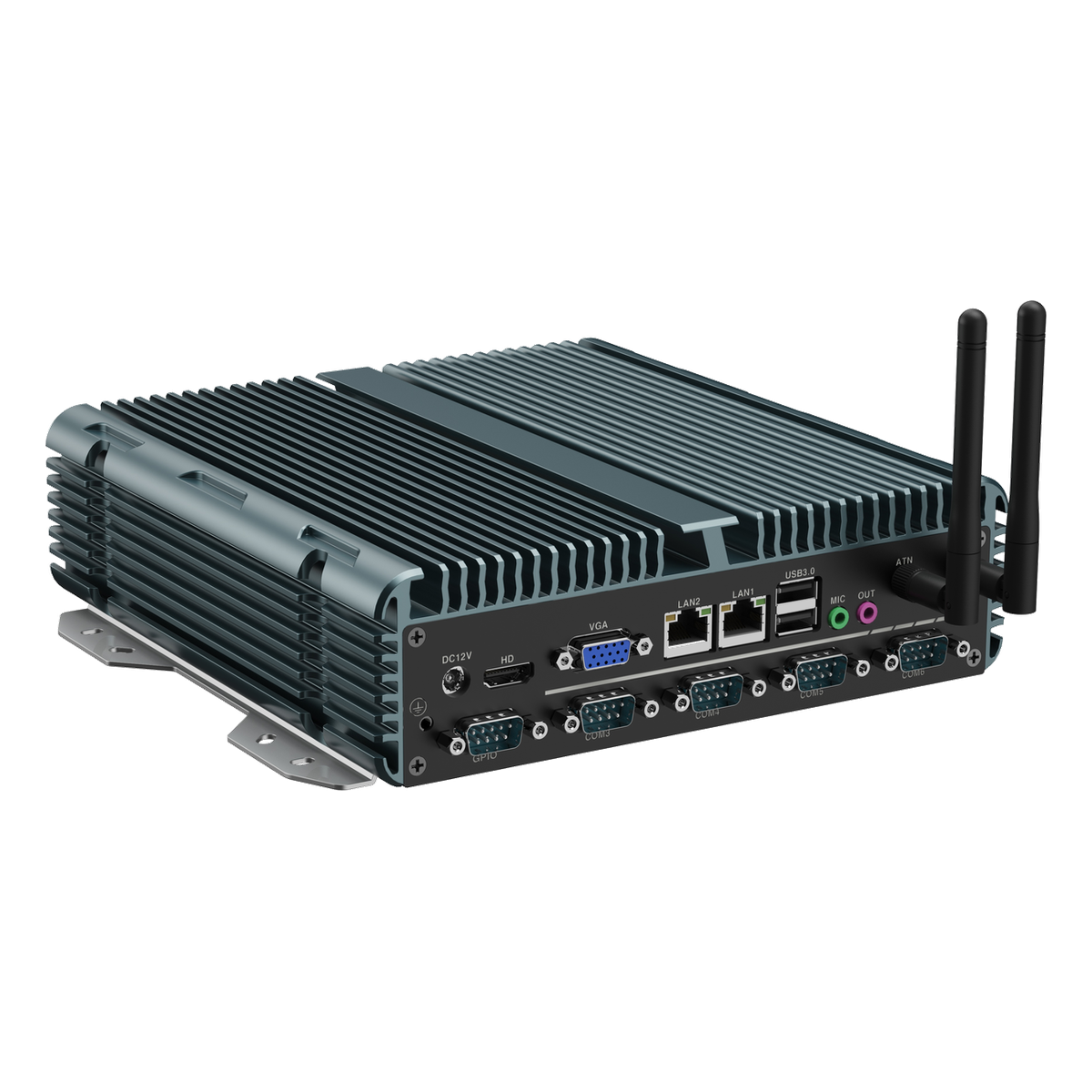

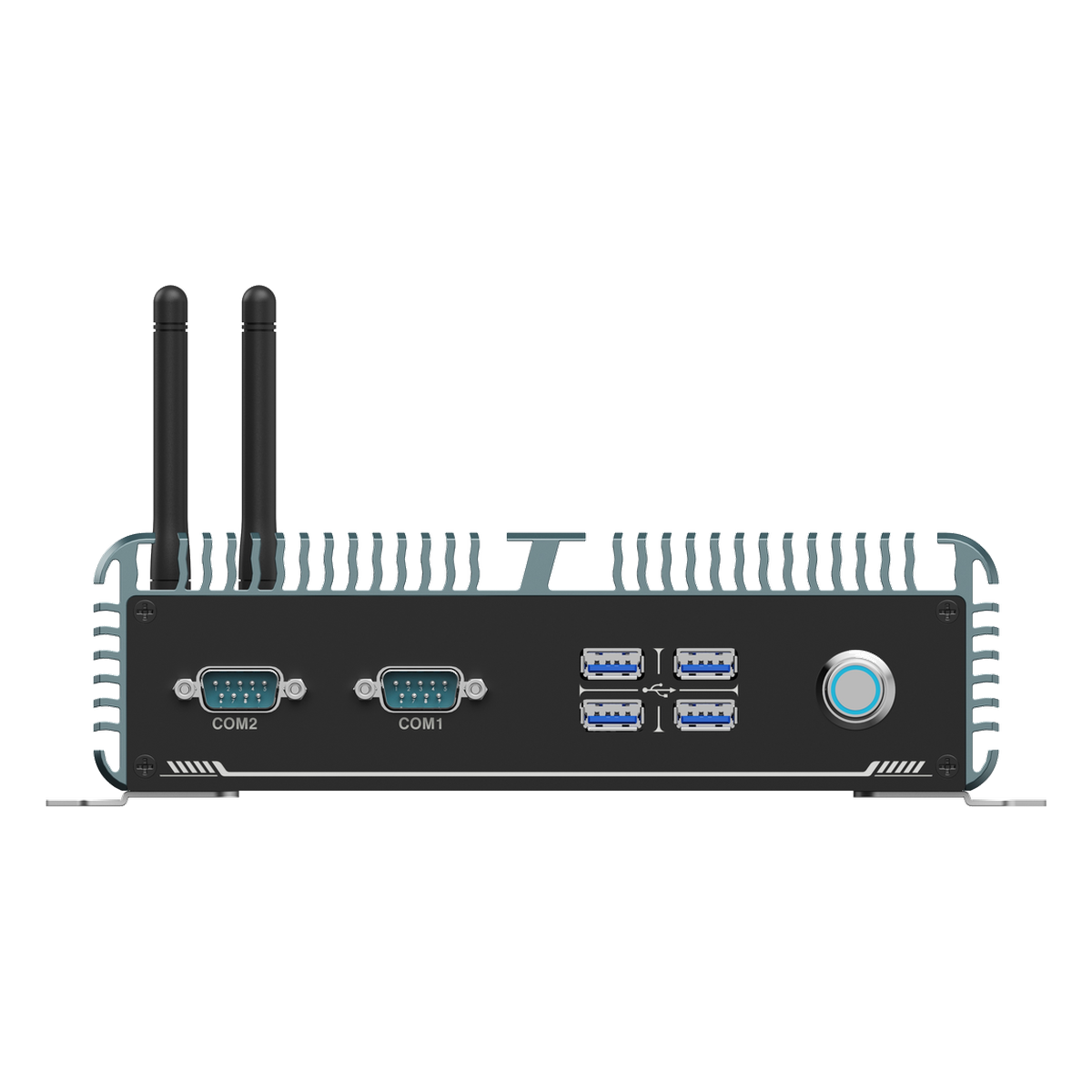

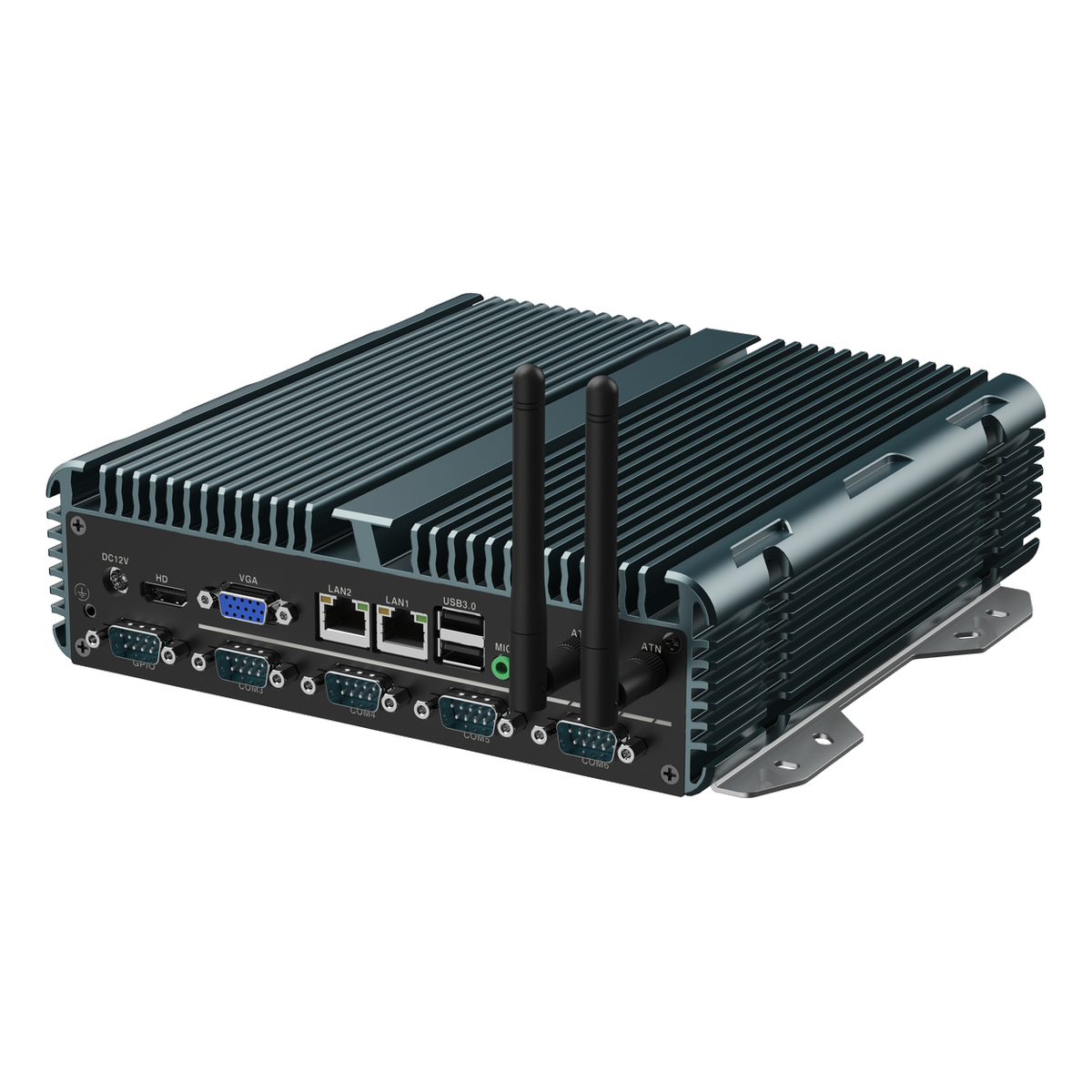

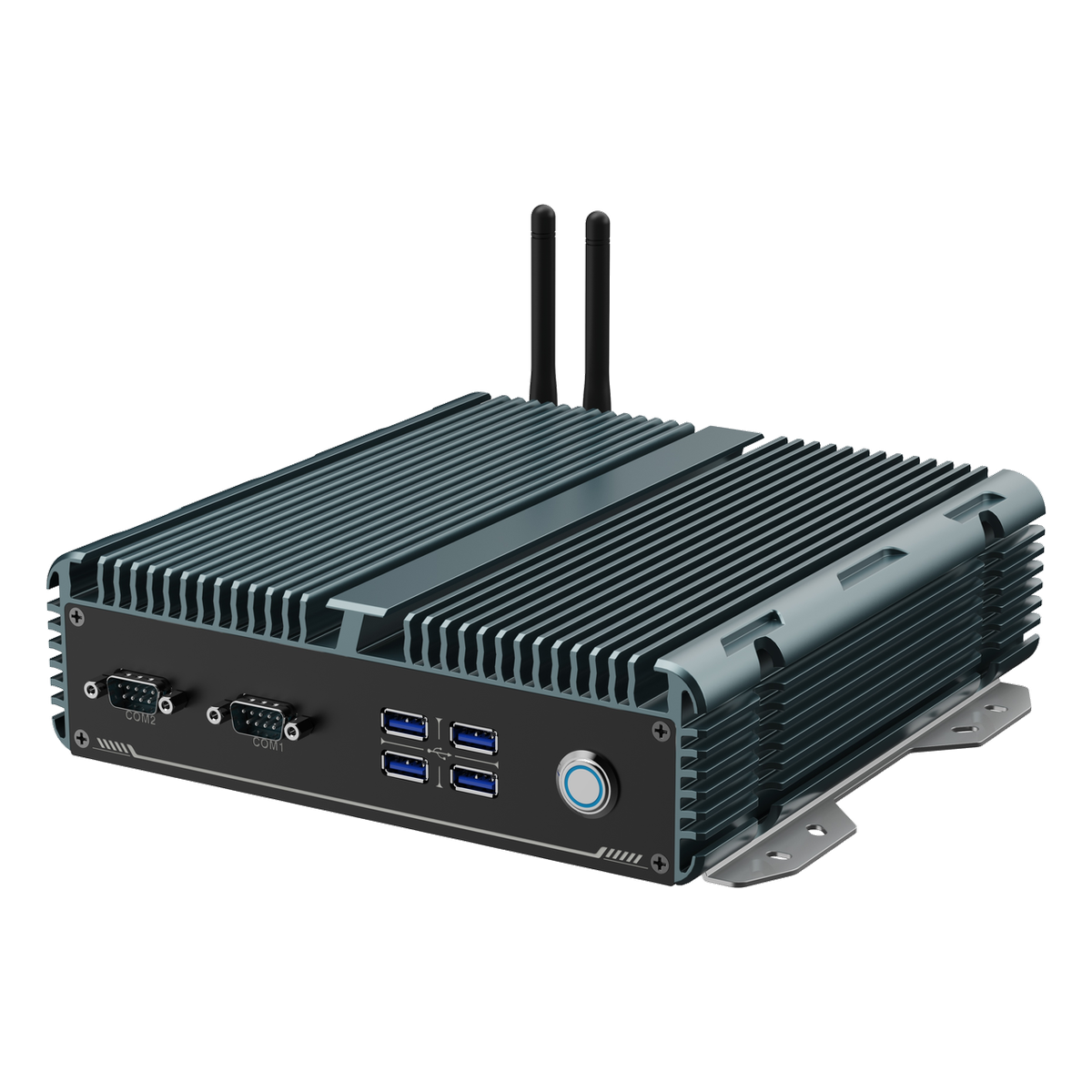

Fanless industrial BOX-PC with Intel Celeron J6412 processor, dual LAN, multiple COM ports, HDMI/VGA display outputs and optional wide voltage input.

Designed for B2B automation projects, this platform helps engineering teams evaluate processor, I/O, power input, operating system, mounting method, and lifecycle requirements before RFQ.

Project-ready Highlights

Key Highlights

  • Intel Celeron J6412 quad-core processor
  • 2 x LAN ports
  • 4 x COM ports
  • 2 x USB3.0
  • HDMI + VGA display outputs
  • DC12V / optional DC9-36V wide voltage input

Engineering Data

Key Specifications Table

Core parameters are shown in a full-width table so procurement and engineering teams can compare configuration requirements quickly.

Processor Intel Celeron J6412 2.0GHz quad-core processor
Chipset Intel platform
Memory 1 x DDR4 3200MHz SO-DIMM, up to 32GB
Storage 1 x M.2 Key-M 2280 SATA protocol + 1 x SATA3.0
LAN 2 x LAN ports
COM 4 x COM
USB 2 x USB3.0
Display Output 1 x HDMI + 1 x VGA
Audio 1 x Audio
Power Input DC12V / optional DC9-36V wide voltage input
Operating Temperature 10°C to 60°C
Material Fanless industrial enclosure
Thermal Design Fanless passive heat dissipation
Mounting Recessed / Wall / Desktop Bracket
Operating System Windows 10 / Windows 11 / Linux

I/O Configuration

Industrial Interfaces

LAN 2 x LAN ports
COM 4 x COM
USB 2 x USB3.0
Display Output 1 x HDMI + 1 x VGA
Audio 1 x Audio

Ordering Options

Configuration Based Ordering

    Application Scenarios

    Typical Uses

    • Serial device control
    • Factory automation
    • PLC / HMI communication
    • Industrial gateway
    • Embedded machine control

    Customization Options

    OEM / ODM Support

    Tell us your CPU, memory, storage, I/O, voltage, mounting, operating system, branding, packaging, and quantity requirements.

    CPU / Memory / StorageLAN / COM / USBDC12V / 9-36VMounting MethodWindows / LinuxLogo / Label / Packaging

    Quality & Compliance

    Quality & Compliance for Industrial Projects

    Project buyers can discuss compliance documents, aging test requirements, thermal design, lifecycle supply and sample validation before RFQ.

    CE / FCC / RoHS documentation support100% aging test discussion for batch ordersWide temperature and vibration reviewFanless thermal design validationLong lifecycle supply supportOEM / ODM engineering communication
