Product Overview

Product Overview

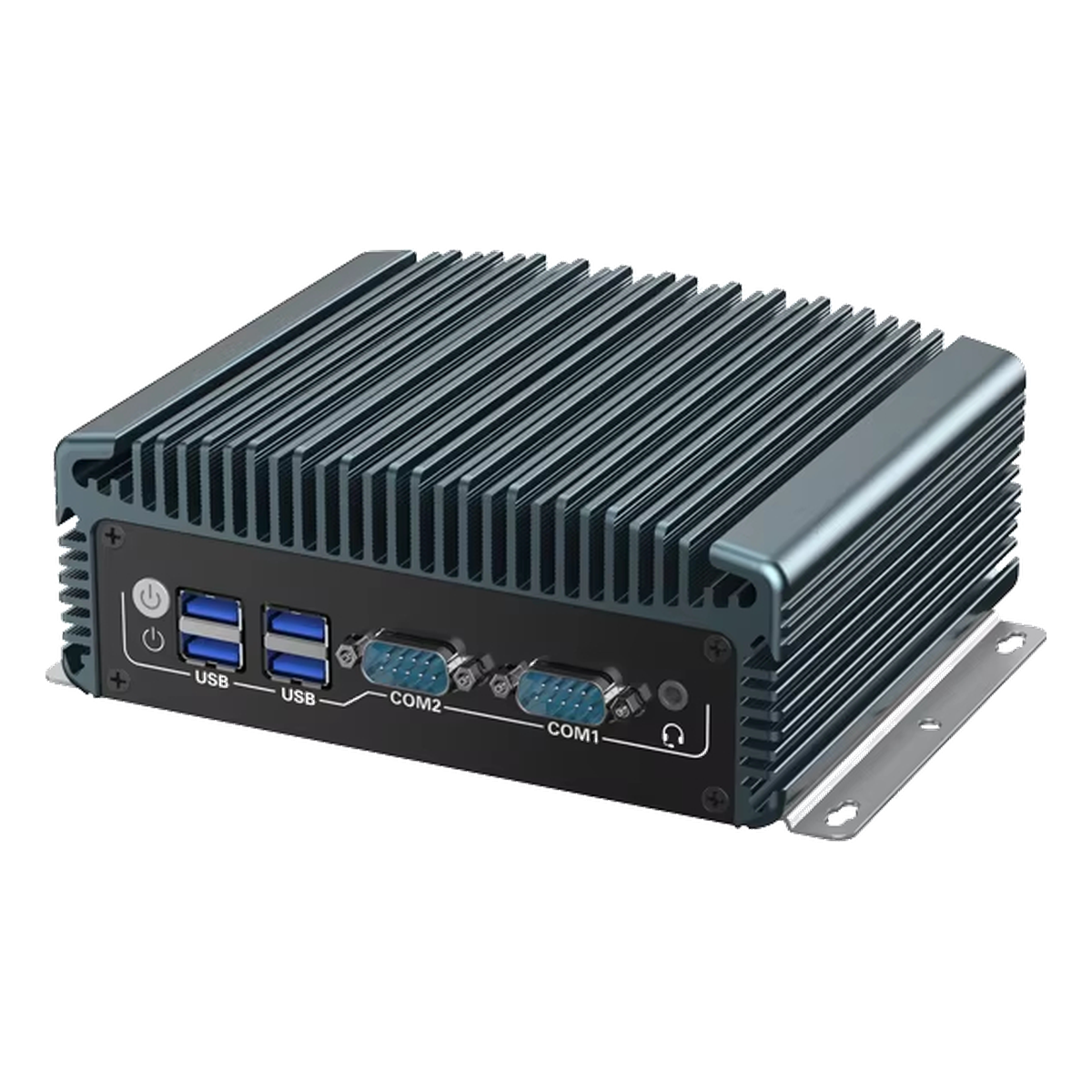

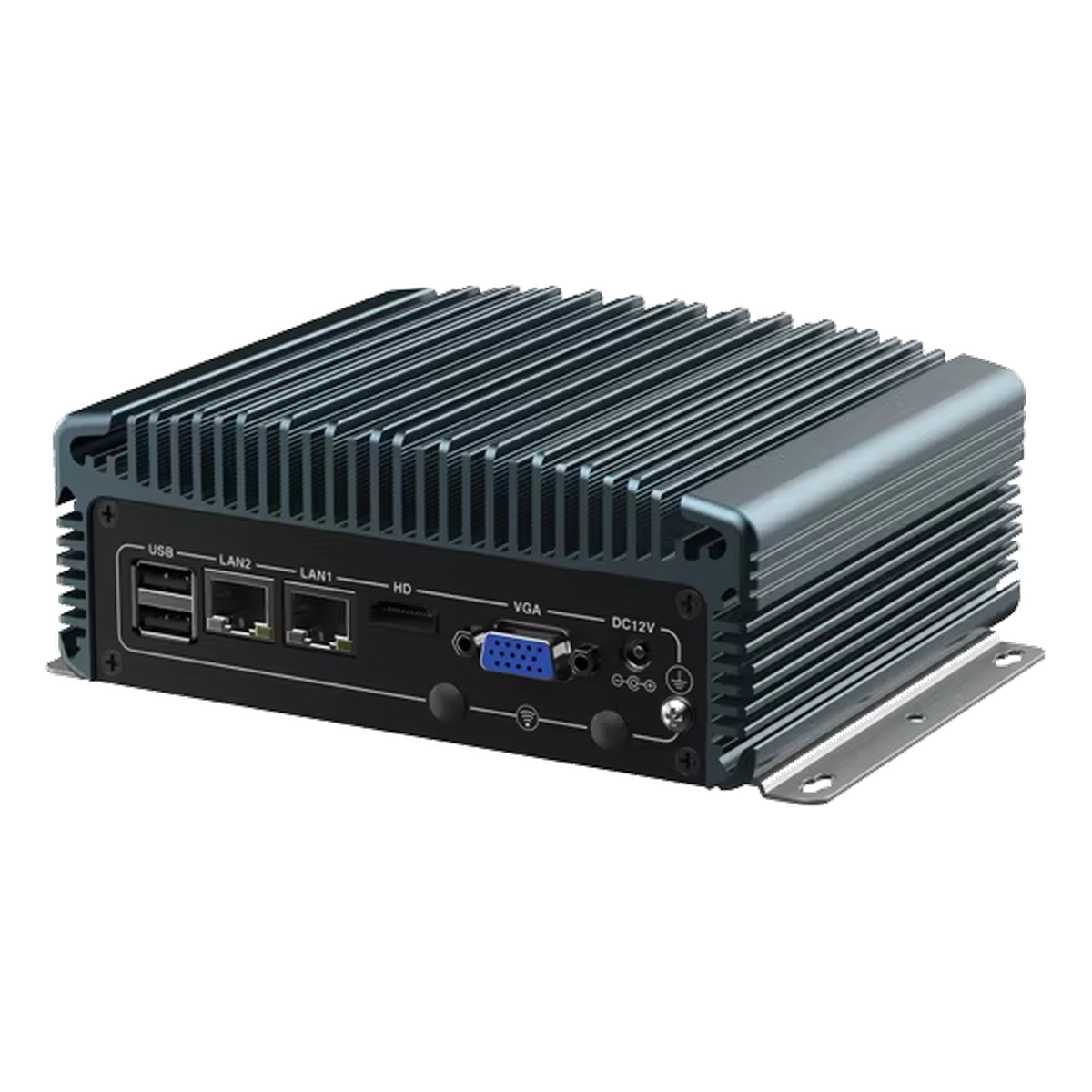

Fanless industrial BOX-PC based on Intel 4th to 7th generation processor platform, with dual LAN, dual COM, HDMI/VGA display outputs and embedded installation support.

Designed for B2B automation projects, this platform helps engineering teams evaluate processor, I/O, power input, operating system, mounting method, and lifecycle requirements before RFQ.

Project-ready Highlights

Key Highlights

  • Intel 4th / 5th / 6th / 7th generation processor platform
  • Fanless industrial BOX-PC design
  • 2 x LAN ports
  • 2 x COM RS232
  • HDMI2.0 + VGA display outputs
  • DC12V input

Engineering Data

Key Specifications Table

Core parameters are shown in a full-width table so procurement and engineering teams can compare configuration requirements quickly.

Processor Onboard Intel 4th / 5th / 6th / 7th generation processor, TDP 15W
Chipset Intel platform
Memory 1 x DDR4 SO-DIMM, up to 16GB
Storage 1 x mSATA + 1 x SATA3.0
LAN 2 x LAN ports
COM 2 x COM RS232
USB 4 x USB + 2 x rear USB
Display Output 1 x HDMI2.0 + 1 x VGA
Audio 1 x 2-in-1 audio
Expansion MiniPCIe expansion slot and SIM card support
Power Input DC12V input
Material Fanless industrial enclosure
Thermal Design Fanless passive heat dissipation
Mounting Embedded installation / Wall-mounted installation

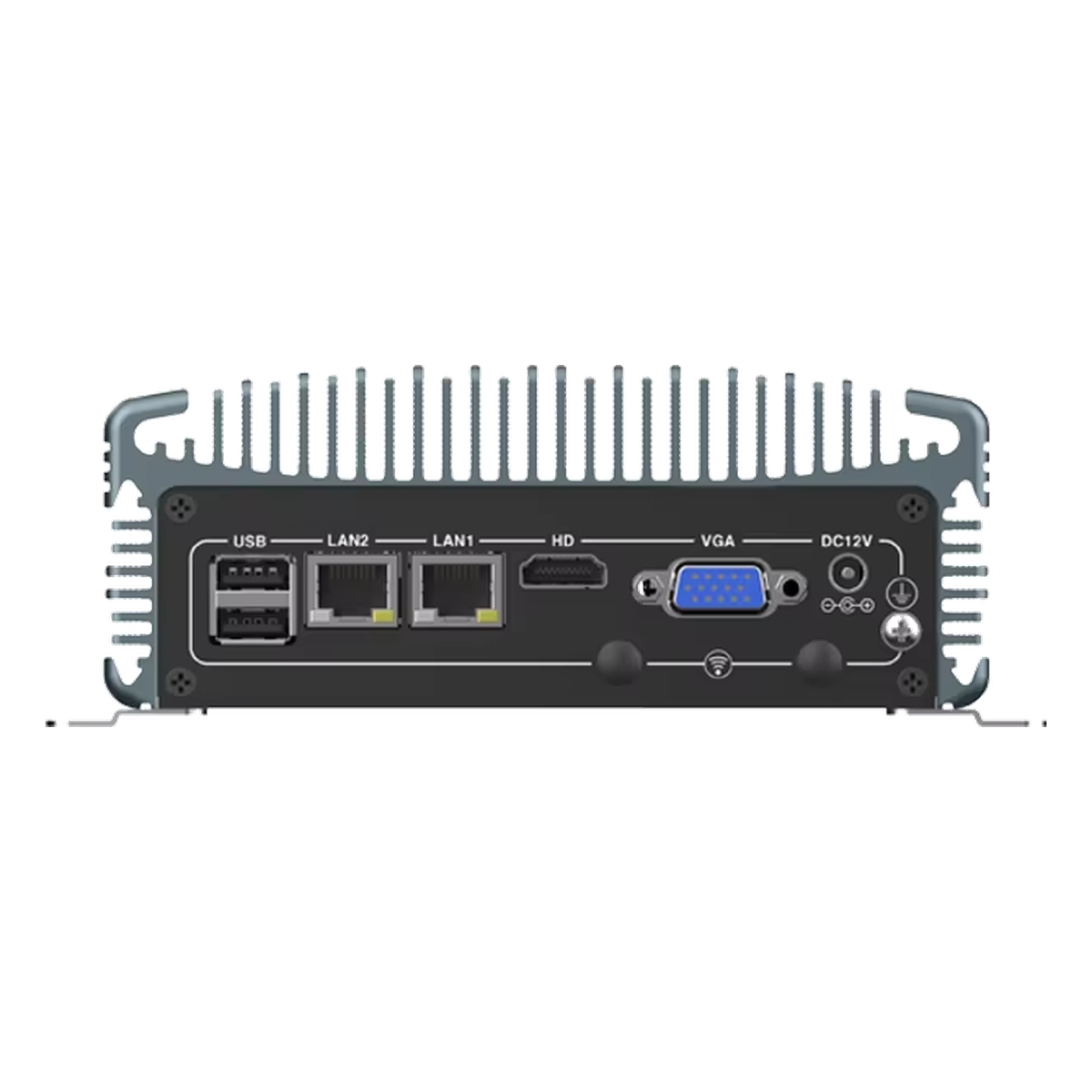

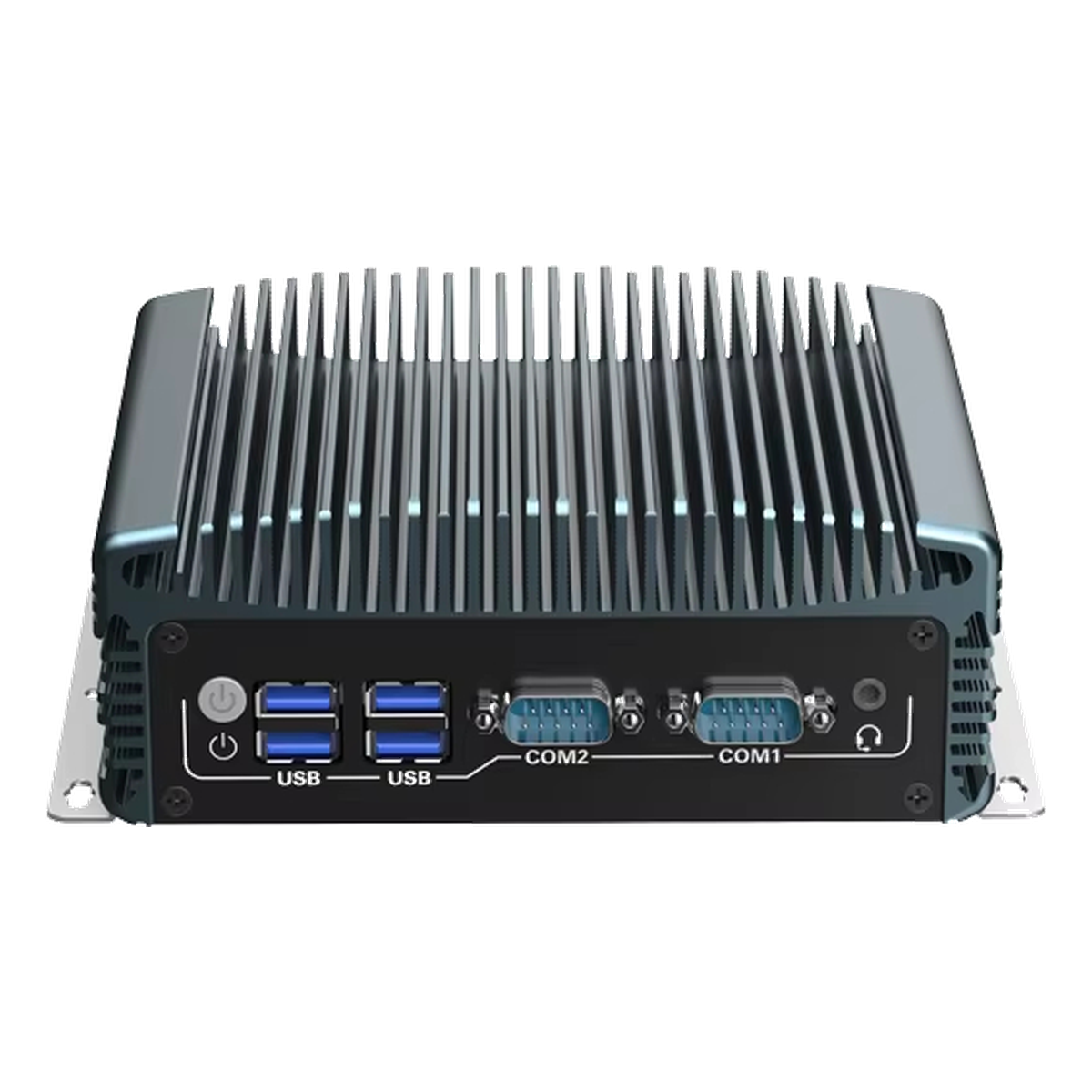

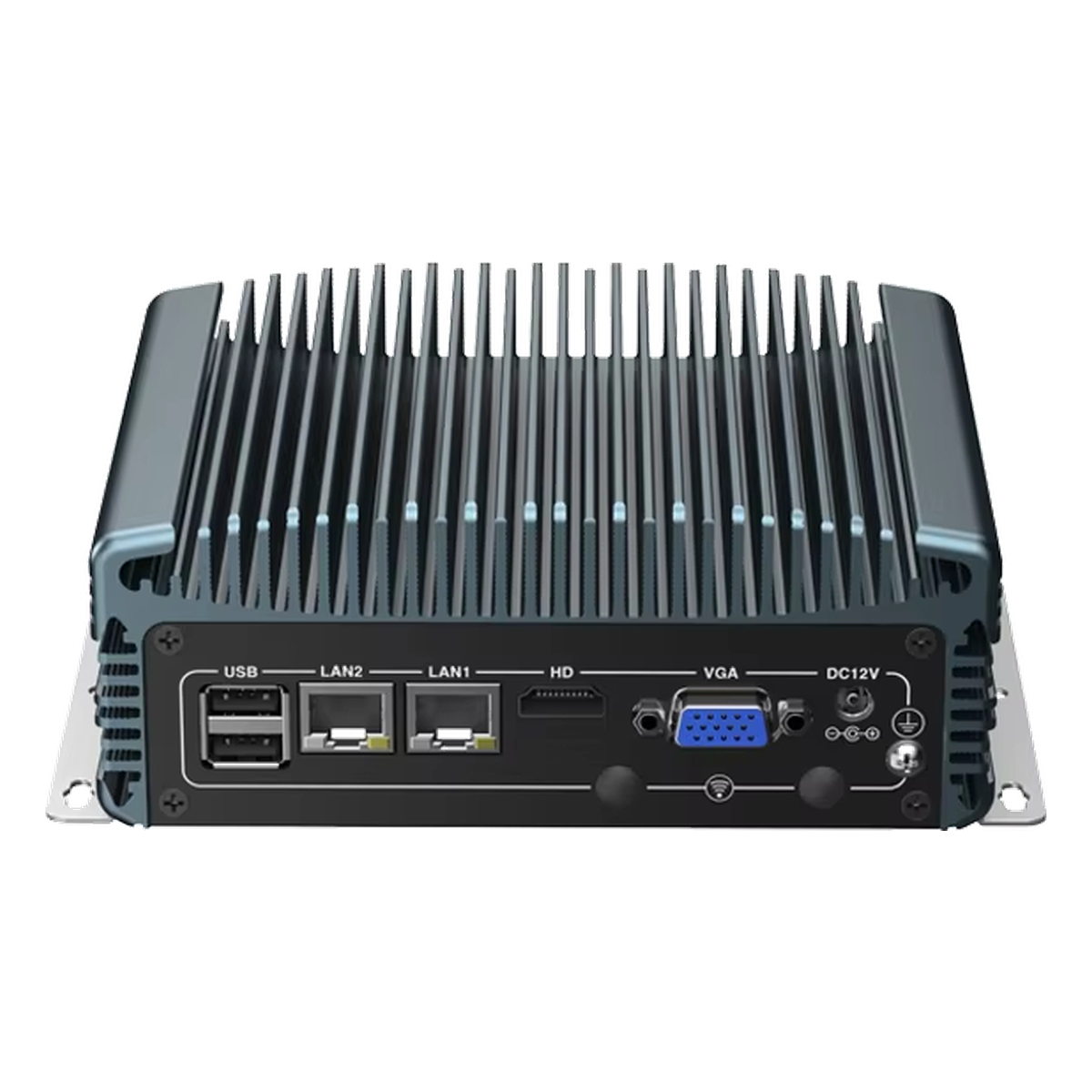

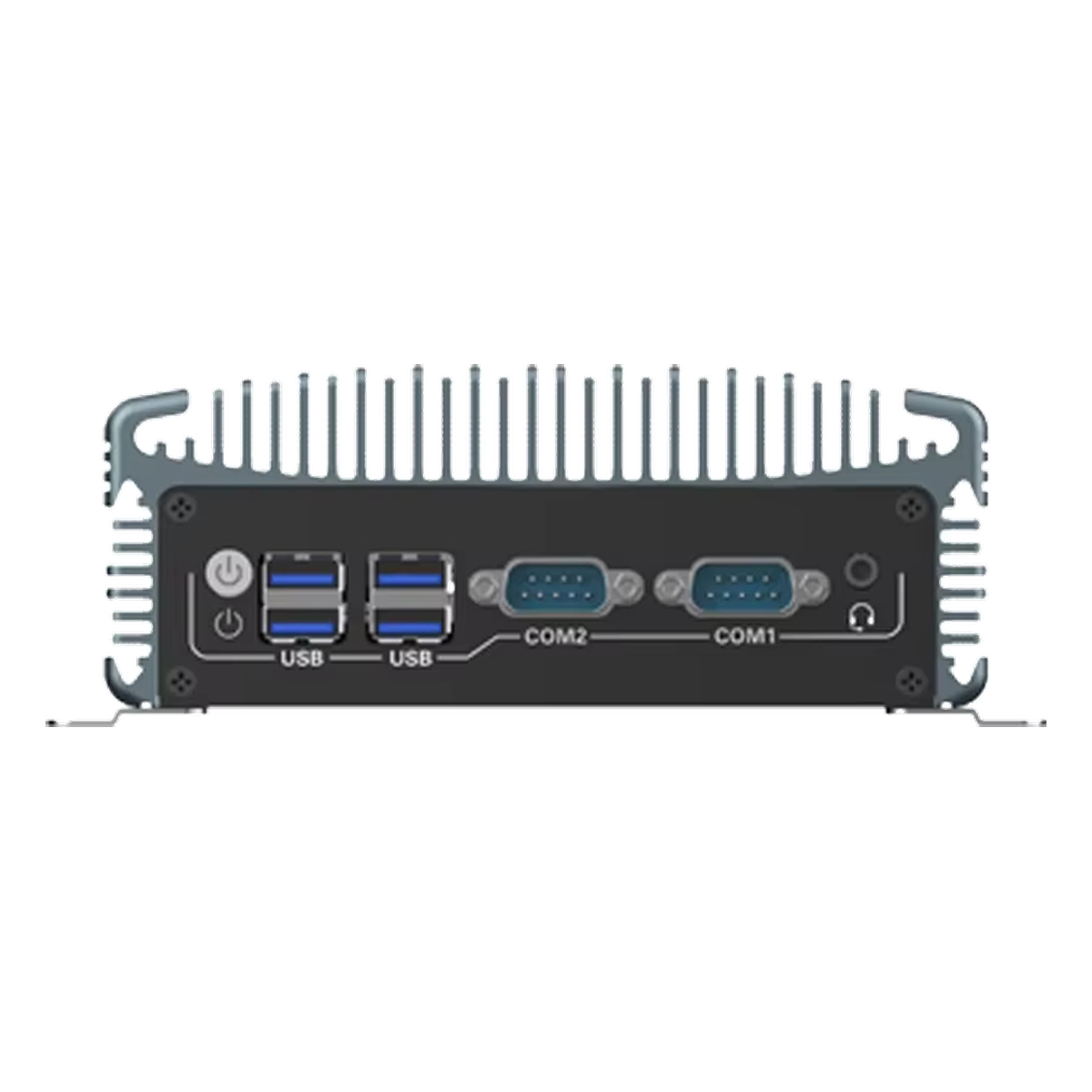

I/O Configuration

Industrial Interfaces

LAN 2 x LAN ports
COM 2 x COM RS232
USB 4 x USB + 2 x rear USB
Display Output 1 x HDMI2.0 + 1 x VGA
Expansion MiniPCIe expansion slot and SIM card support
Audio 1 x 2-in-1 audio

Ordering Options

Configuration Based Ordering

    Application Scenarios

    Typical Uses

    • Industrial automation
    • Embedded control
    • Industrial gateway
    • Machine control
    • Legacy industrial system upgrade

    Customization Options

    OEM / ODM Support

    Tell us your CPU, memory, storage, I/O, voltage, mounting, operating system, branding, packaging, and quantity requirements.

    CPU / Memory / StorageLAN / COM / USBDC12V / 9-36VMounting MethodWindows / LinuxLogo / Label / Packaging

    Quality & Compliance

    Quality & Compliance for Industrial Projects

    Project buyers can discuss compliance documents, aging test requirements, thermal design, lifecycle supply and sample validation before RFQ.

    CE / FCC / RoHS documentation support100% aging test discussion for batch ordersWide temperature and vibration reviewFanless thermal design validationLong lifecycle supply supportOEM / ODM engineering communication
