Product Overview

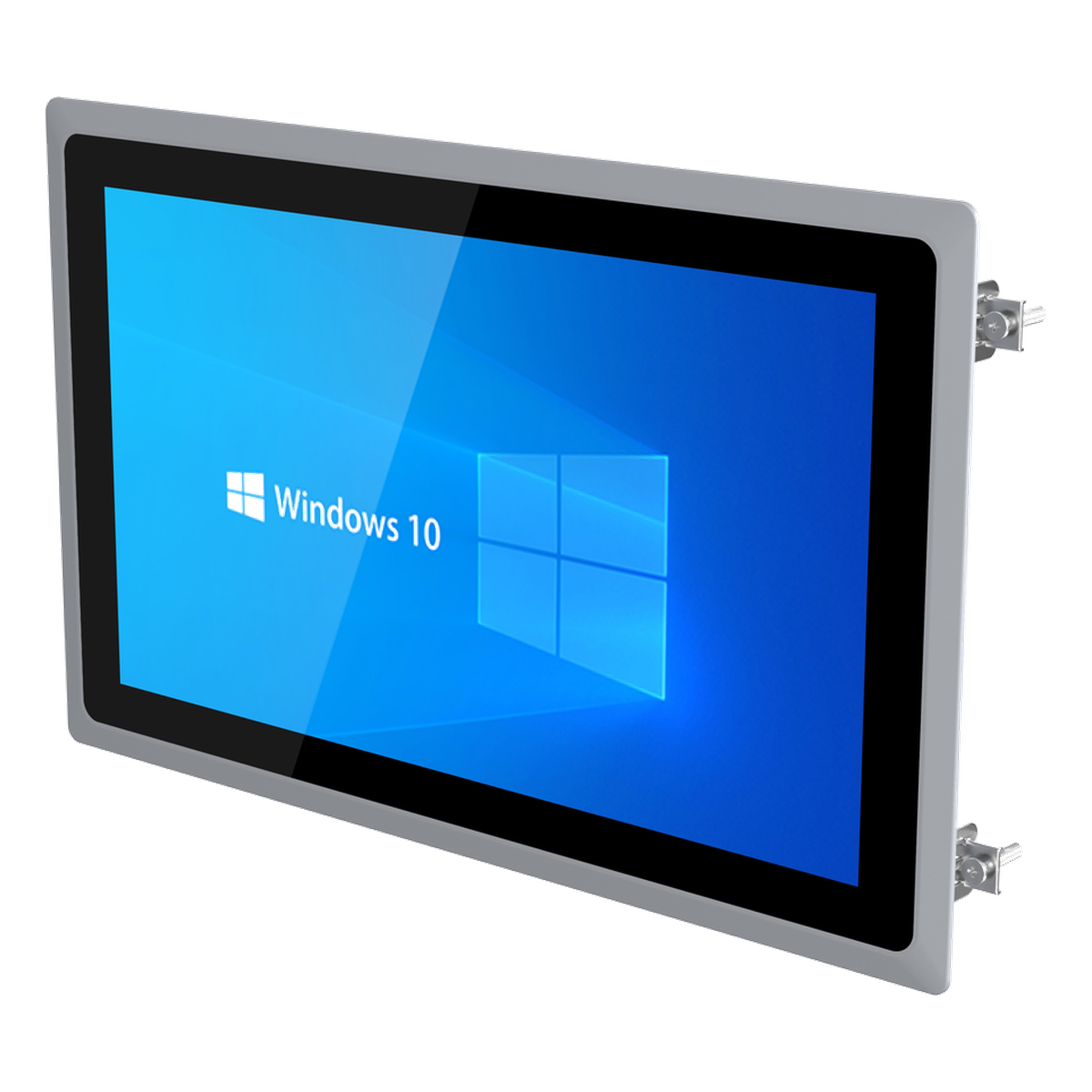

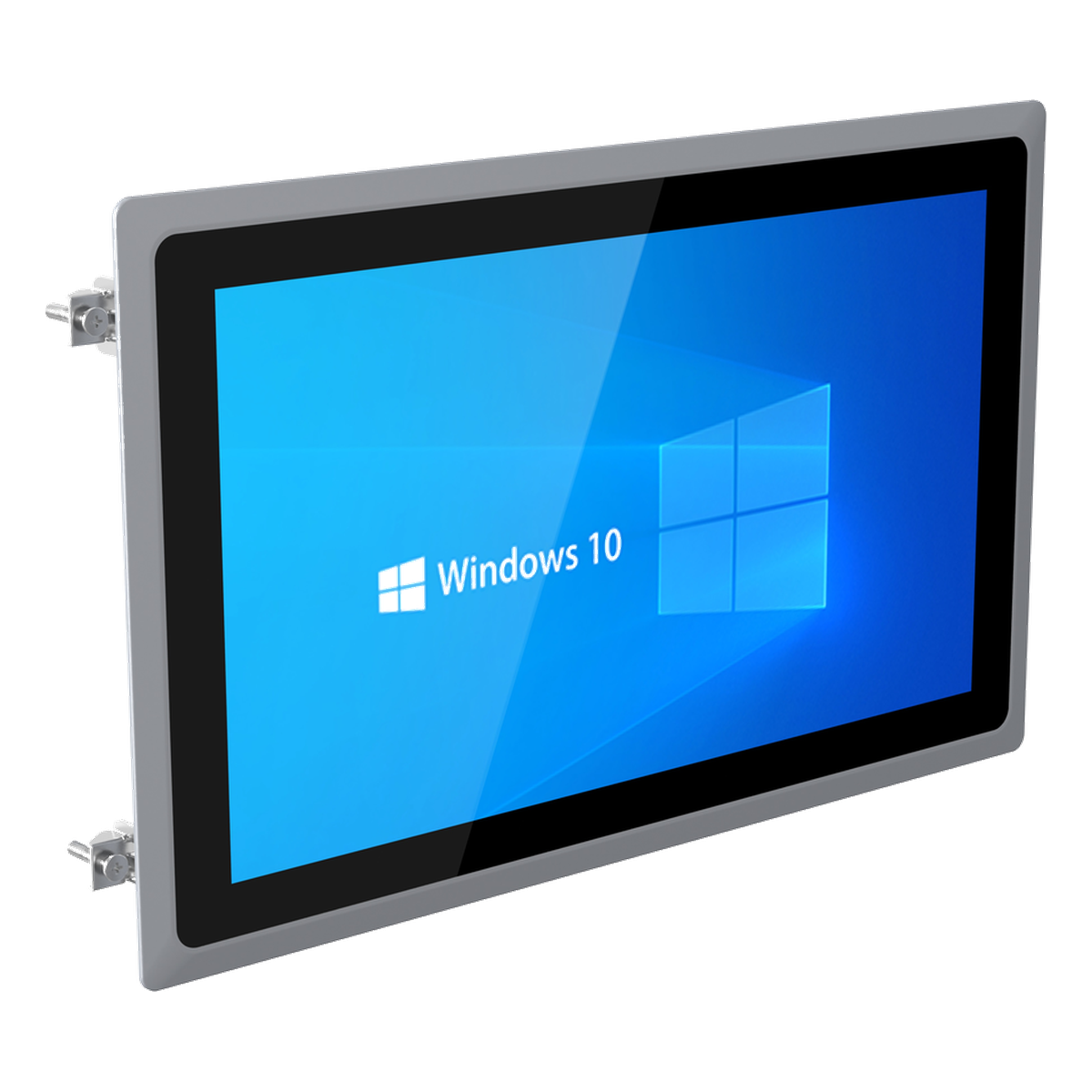

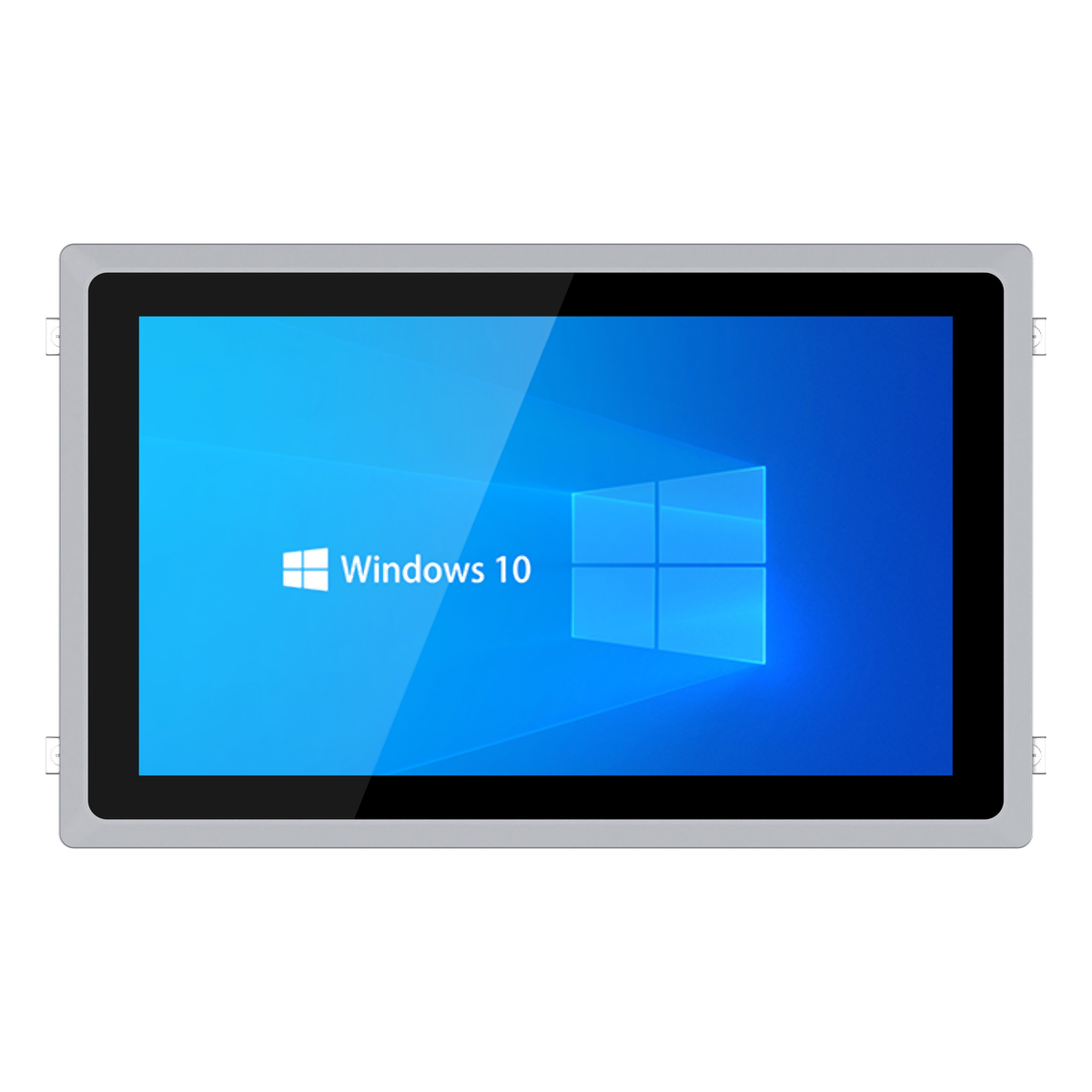

15.6-inch widescreen industrial panel PC with aluminum alloy enclosure, capacitive touch, fanless design and embedded Intel processor platform options.
Designed for B2B automation projects, this platform helps engineering teams evaluate processor, I/O, power input, operating system, mounting method, and lifecycle requirements before RFQ.
Project-ready Highlights
Engineering Data
Core parameters are shown in a full-width table so procurement and engineering teams can compare configuration requirements quickly.
| Processor | Intel low-power embedded 6th / 7th / 11th / 12th / 13th generation CPU options |
|---|---|
| Chipset | Intel embedded 6th / 7th / 11th / 12th / 13th generation SOC |
| Memory | 4GB / 8GB / 16GB, configuration subject to actual model |
| Storage | 1 x M.2 M Key 2280 NVMe PCIe x4 / SATA SSD adaptive slot, or 1 x 2.5-inch hard disk position |
| Screen Size | 15.6 inch |
| Resolution | 1920 x 1080 |
| Brightness | 300 cd/m² optional |
| Touch Type | Capacitive G+G 10-point touch; optional resistive touch |
| Touch Performance | Response time < 8ms, touch accuracy ≤ 2mm |
| LAN | 2 x Gigabit LAN |
| COM | 2 x COM standard, optional 6COM |
| USB | 2 x USB3.0 |
| Display Output | 1 x HDMI |
| Audio | 1 x 2-in-1 audio interface |
| Expansion | 1 x M.2 Key-E 2230 for WiFi + Bluetooth module; optional GPIO 10PIN |
| Power Input | DC12V input, optional 9-36V wide voltage input |
| Operating Temperature | -10°C to 60°C |
| Storage Temperature | -40°C to 80°C |
| Humidity | 10% - 95% @ 40°C, non-condensing |
| Dimensions | TBD, bare metal |
| Material | High-quality aluminum alloy + steel plate |

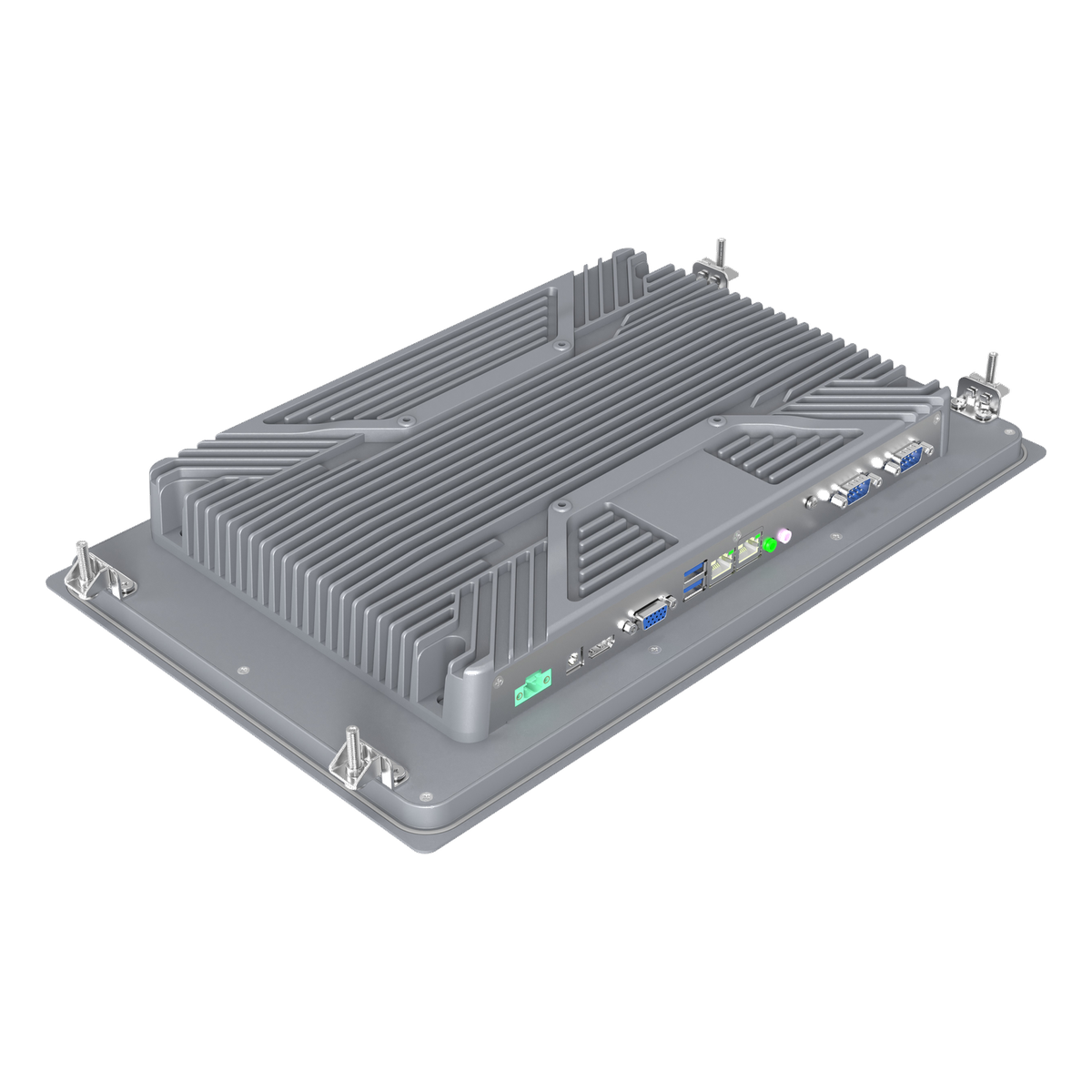

| Thermal Design | Fanless passive heat dissipation |

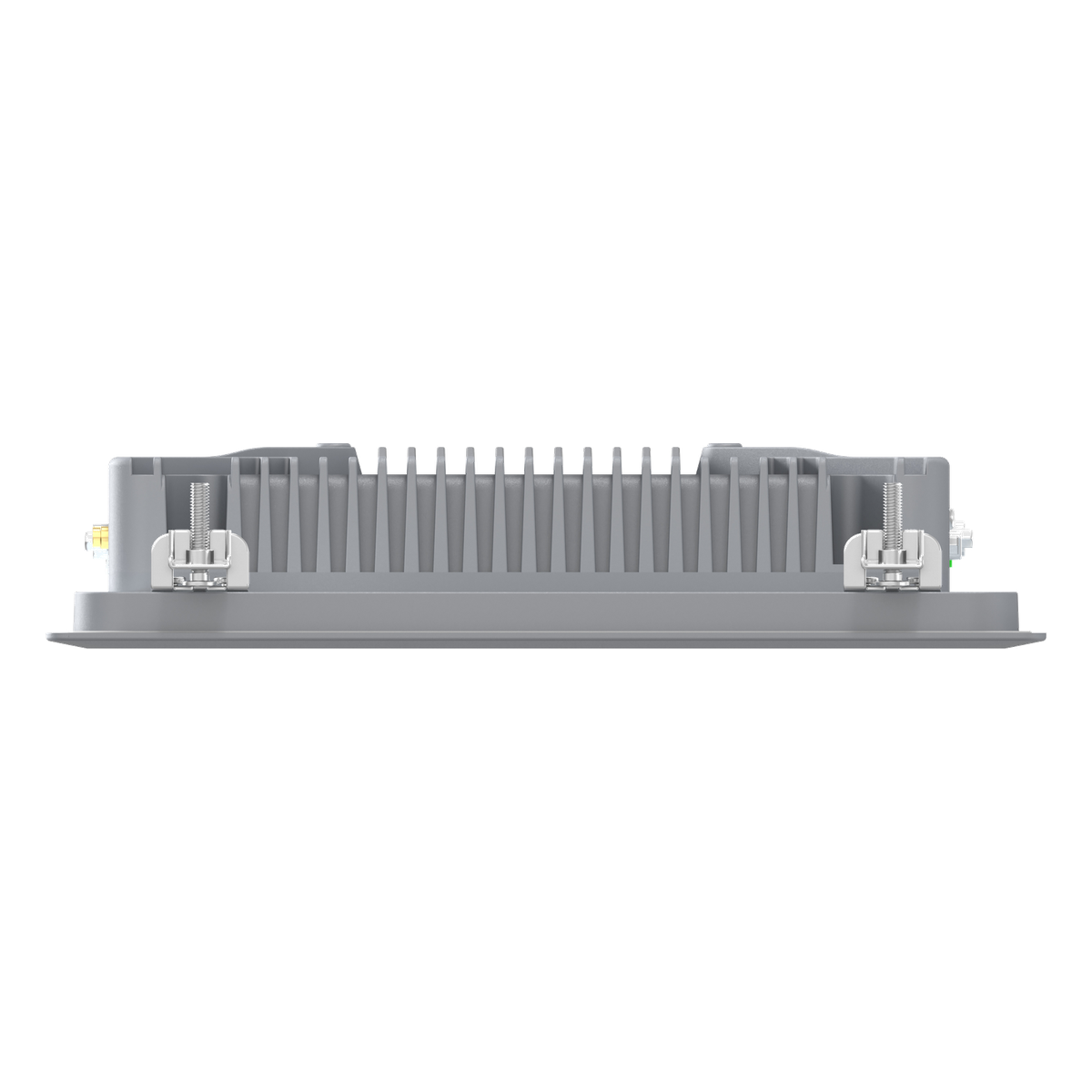

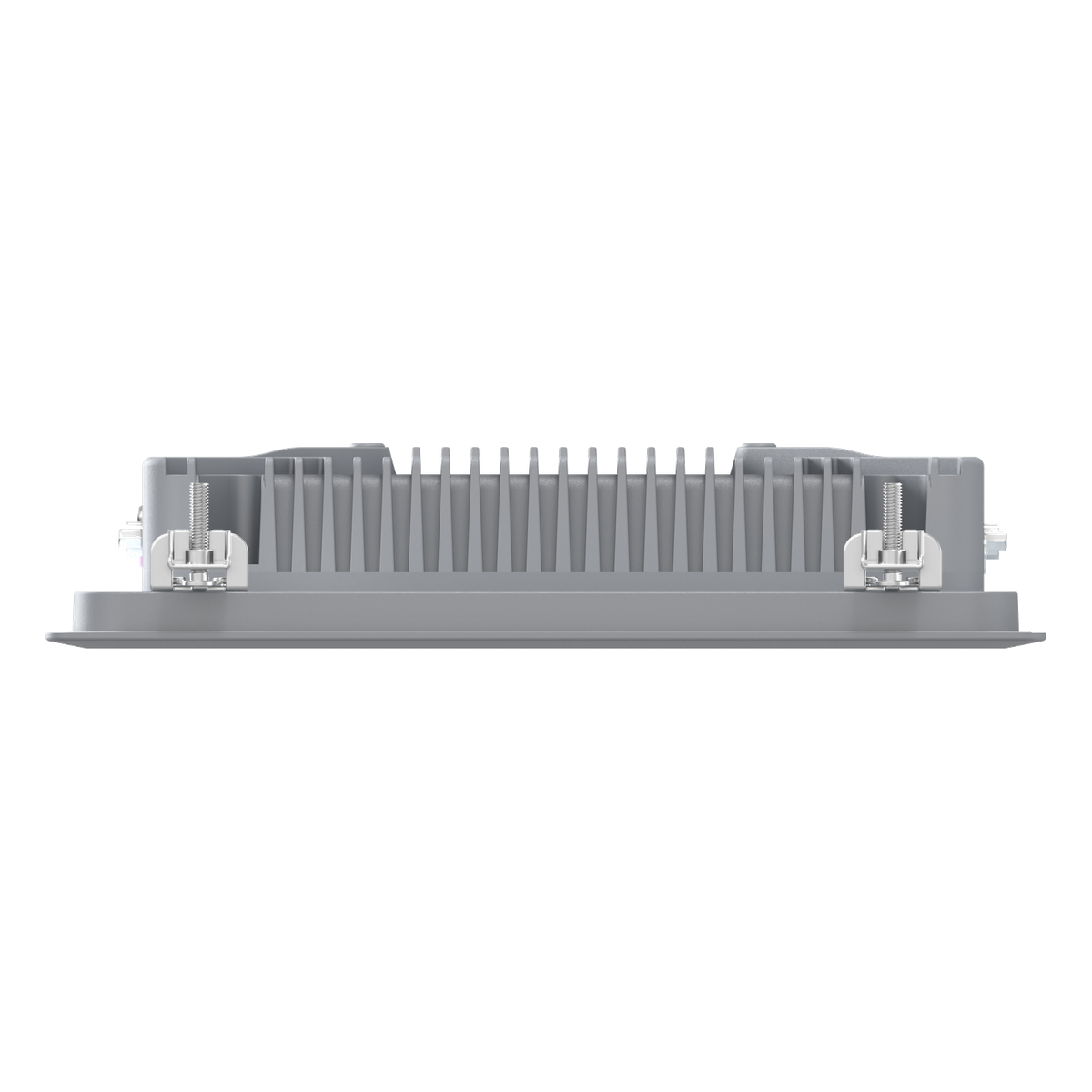

| Mounting | Embedded / Wall mount / Desktop stand |
| Weight | Net 4.5kg / Gross 5kg |
| Operating System | 6th/7th Gen: Windows 7/10/11/Linux; 11th/12th/13th Gen: Windows 11/Linux |

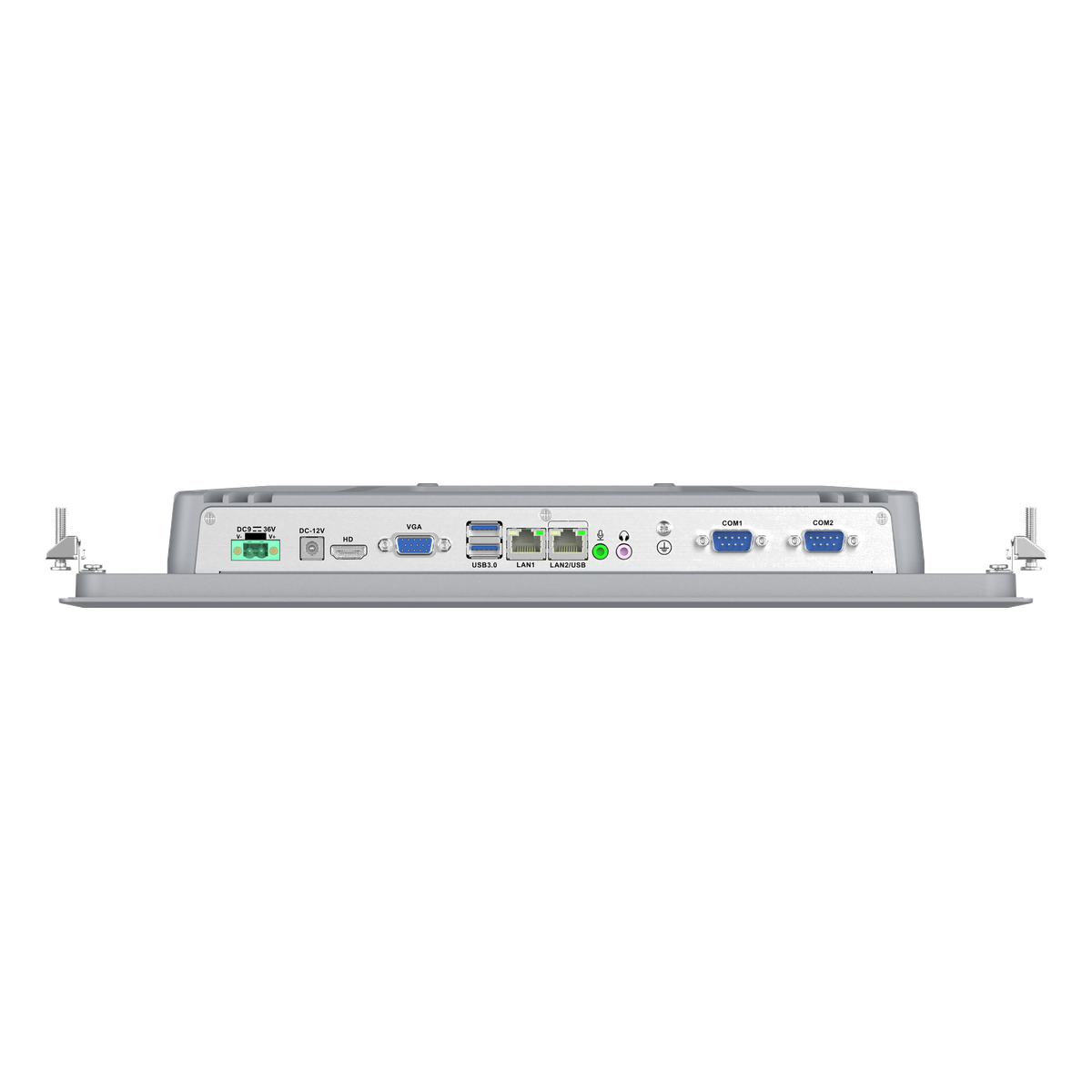

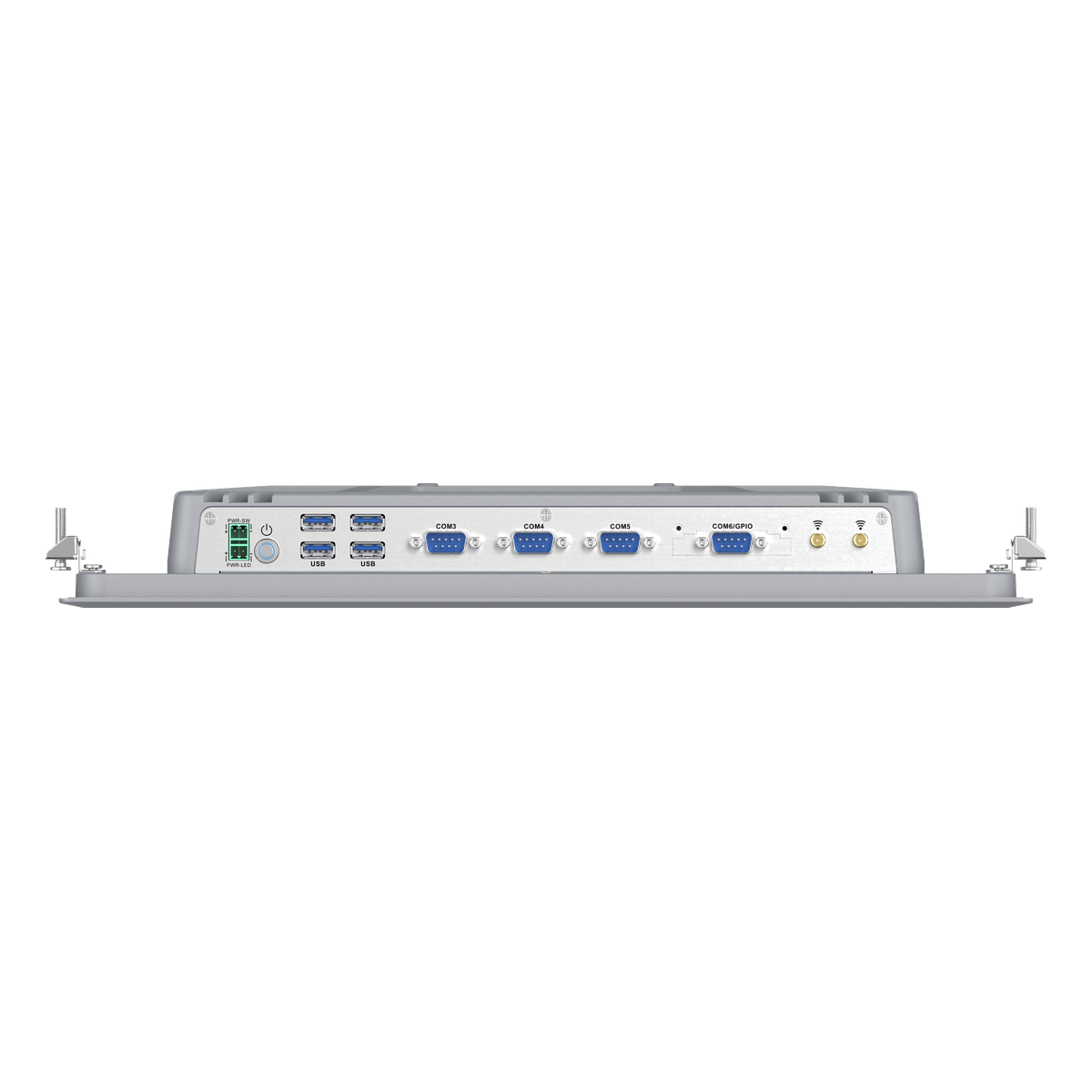

I/O Configuration
Ordering Options
Application Scenarios
Customization Options
Tell us your CPU, memory, storage, I/O, voltage, mounting, operating system, branding, packaging, and quantity requirements.
Documentation
Quality & Compliance
Project buyers can discuss compliance documents, aging test requirements, thermal design, lifecycle supply and sample validation before RFQ.
